Action set for electric smoker Asgard 2000W (smoke generator + 2kw heating coil + thermoregulator)

Action set for the Asgard smoker (Heimdall smoke generator + 2kw heating coil + E-RTM D201 Thermoregulator)

The complete heating element with deflector, thermoregulator and smoke generator includes:

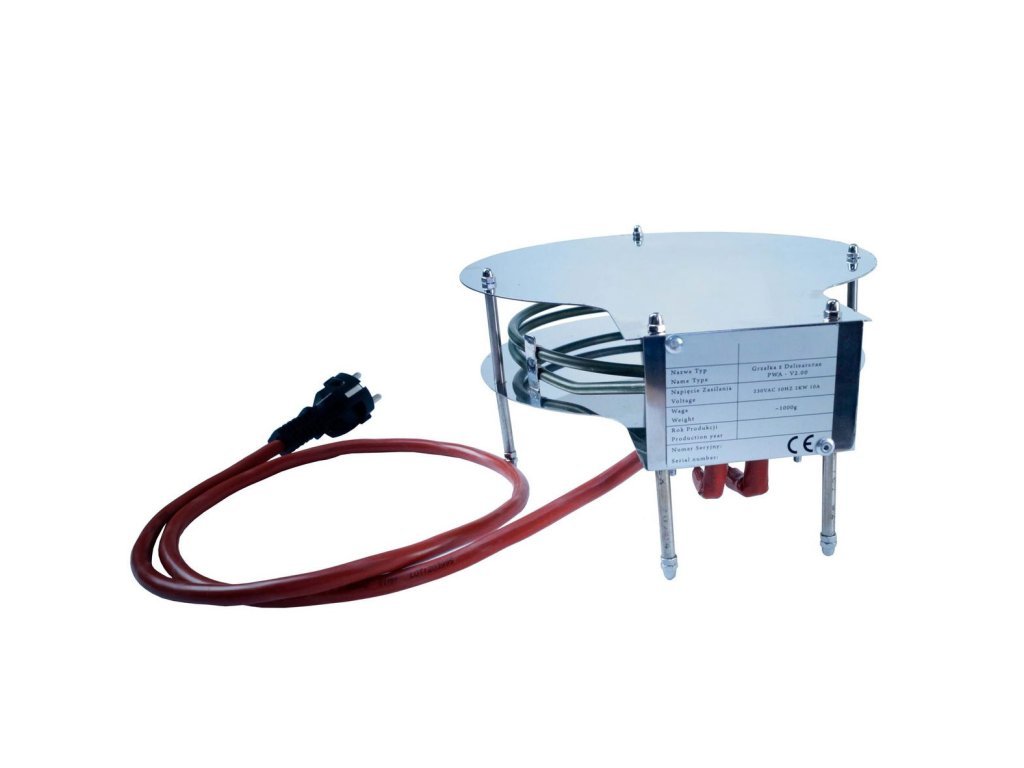

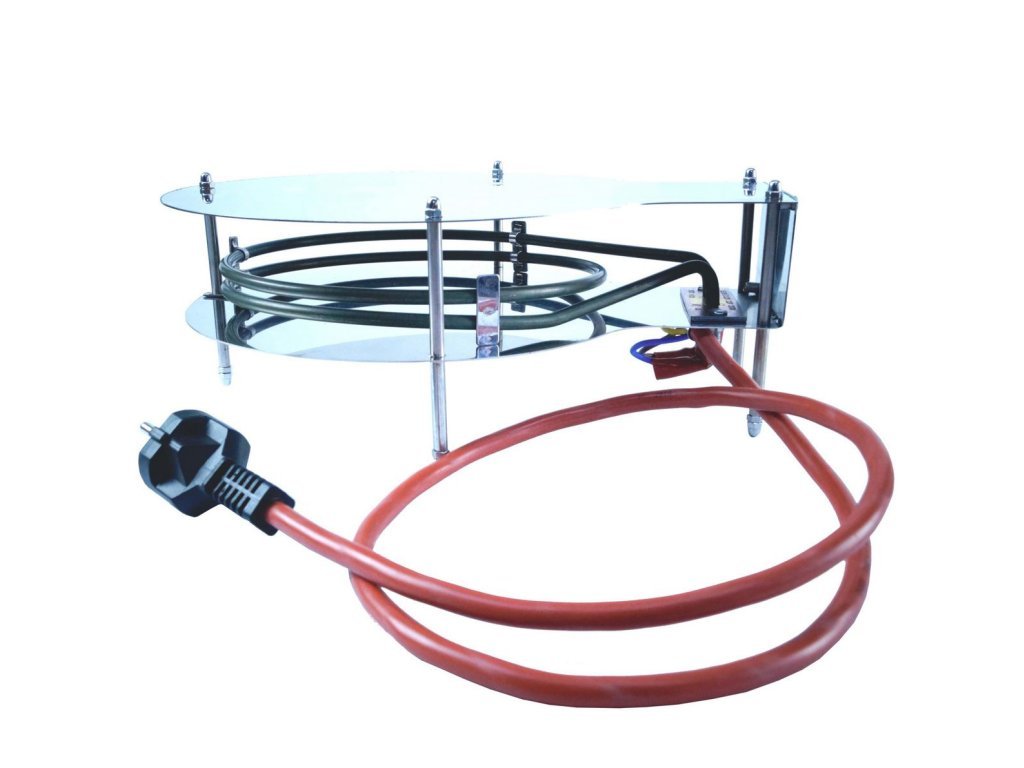

• Electric heating element with a power of 2000W
• Power cable W-1 SIHF 3G2,5 L-1500 terminated with IP44 plug
• Connection system
• Programmable Thermostat
• 3 x 2.5 mm thick cables with a load capacity of 16 A with IP44 protection
• 1. Power cable 1.4 m
• 2. Cable with socket 0.5 m
• 3. Temperature sensor 1.5 m
• our Heimdall 3l smoke generator with opening ashtray
• Free from us: 1 kg of wood chips

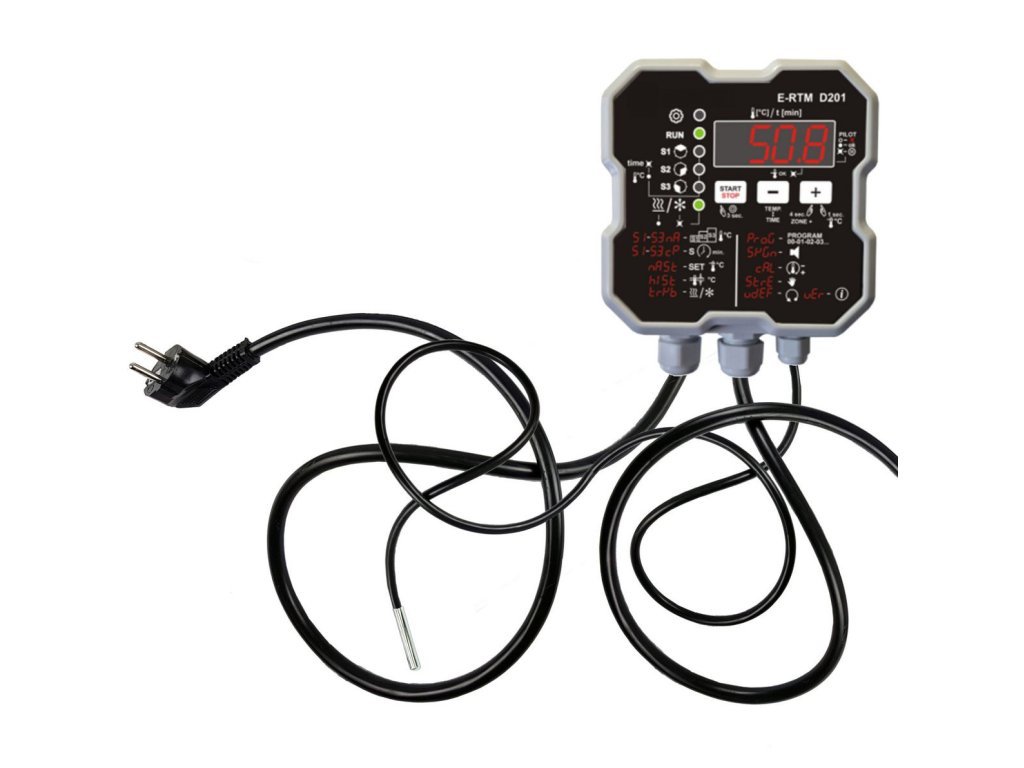

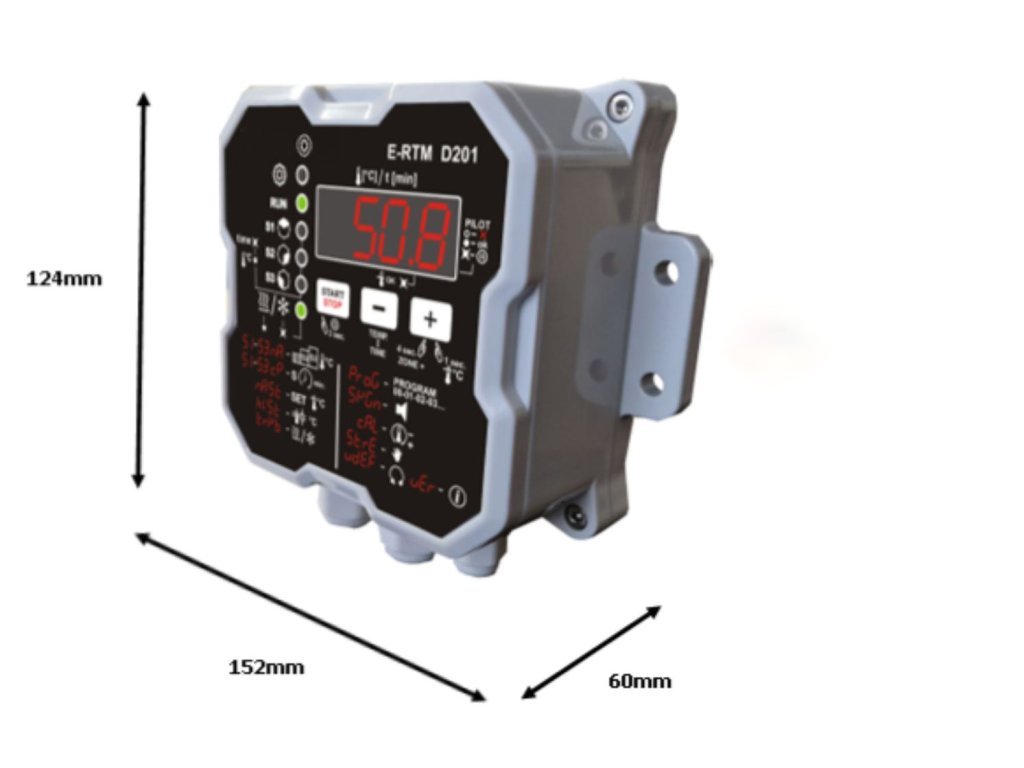

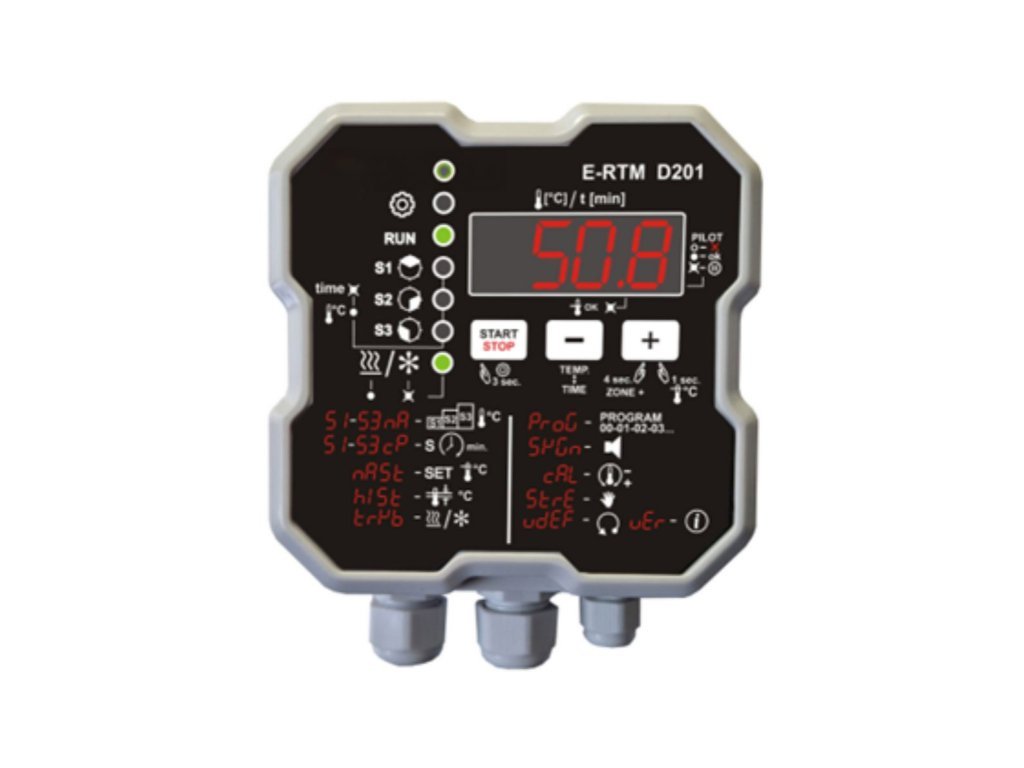

Features of the thermostat - temperature controller

• Possibility of programming up to 3 different cycles and their combinations
• Measuring element symbol in the temperature sensor: NTC 10k

• Temperature setting range: from 1 °C to 140 °C

• Temperature hysteresis: from 0.2°C to 25°C

• Ambient temperature during regulator operation: from -20°C to 45°C

• Hermetic protection: IP 65

• Supply voltage: ~230V 50Hz

• Operating range of the temperature sensor: from 0°C to 100°C

• Output load capacity: inductive load 1500W

• Output load capacity: resistive load 4500W

• Power consumption (regulator only): 2W

• Protection: fuse on the main board 1.25A ~230V

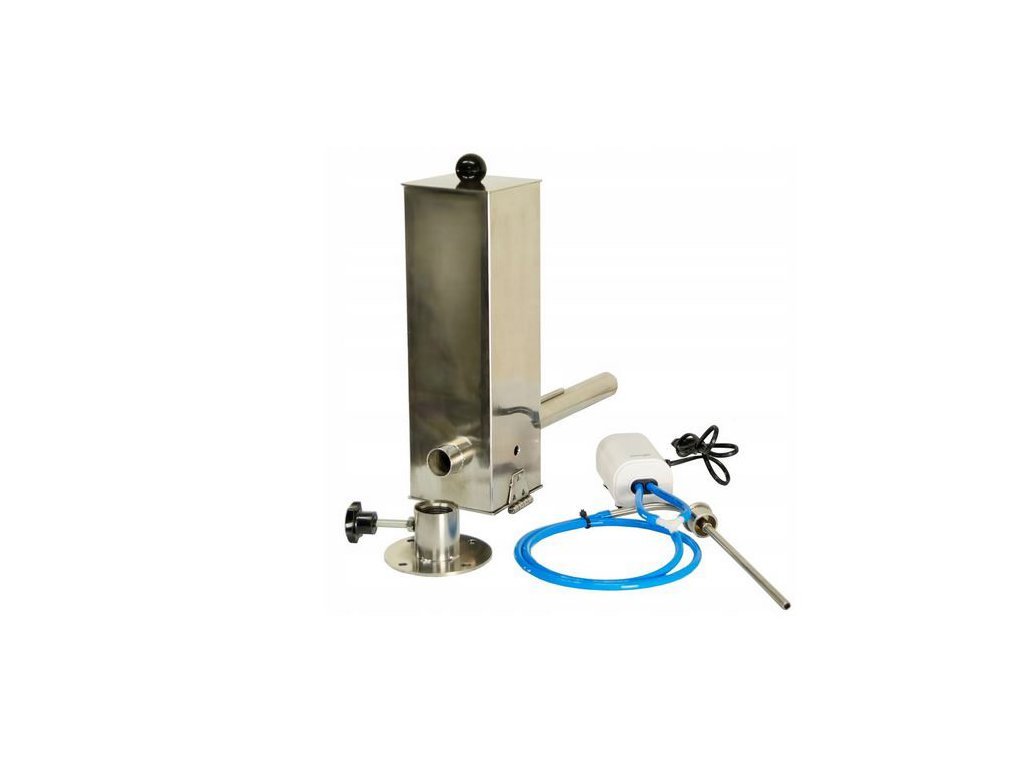

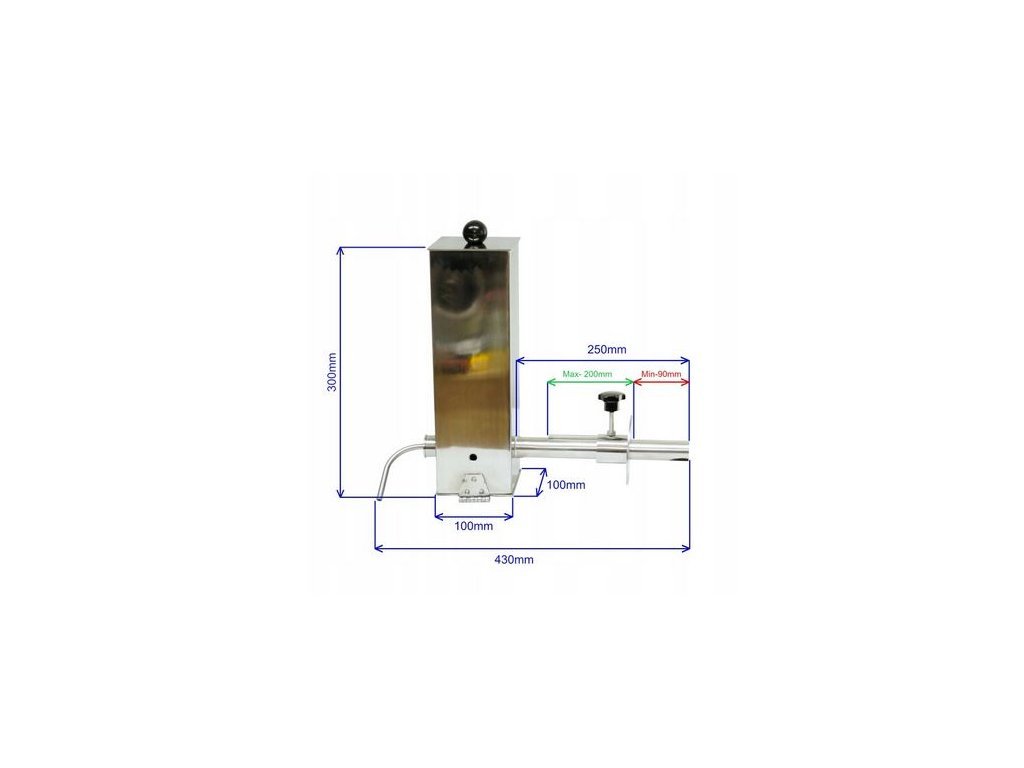

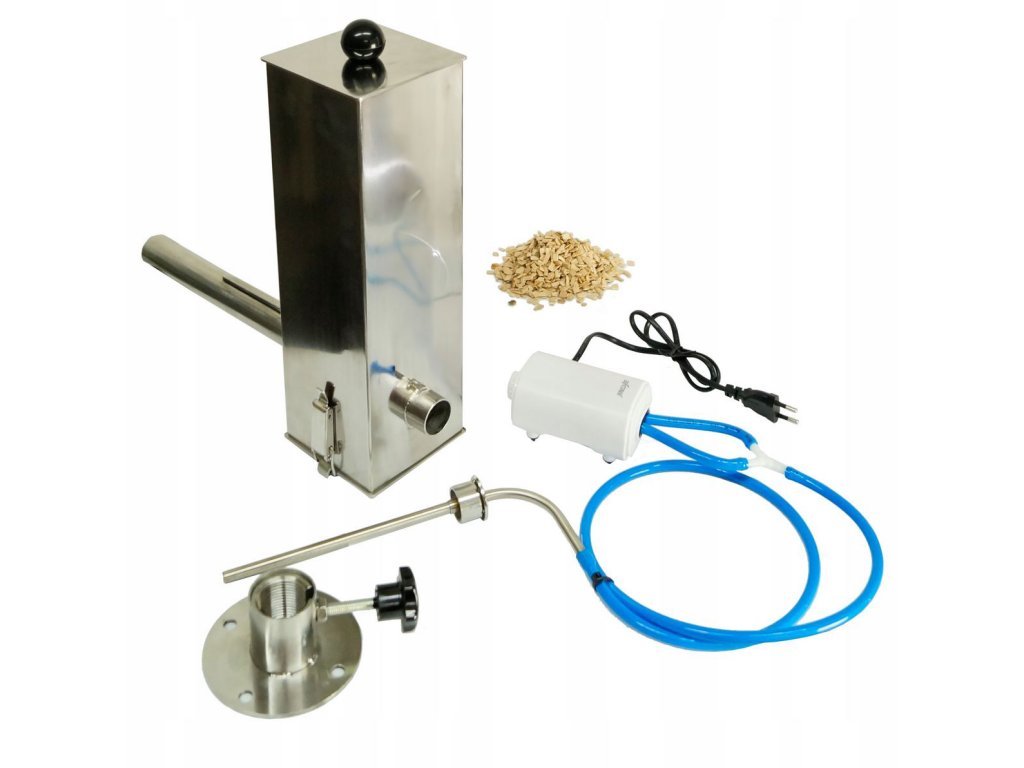

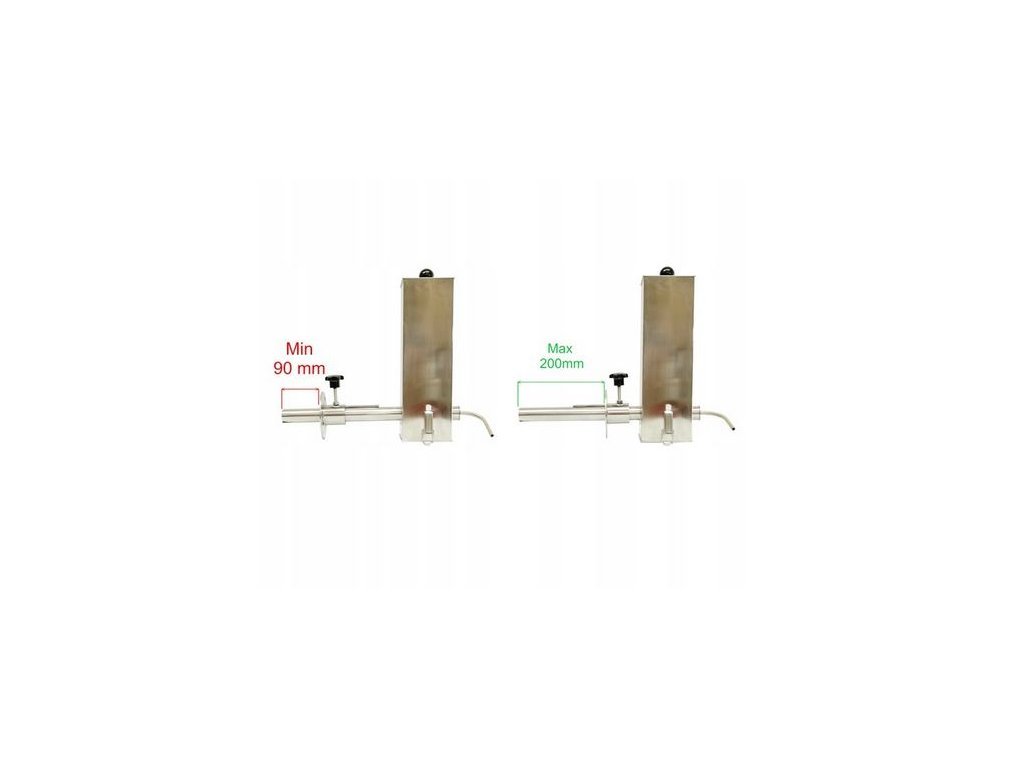

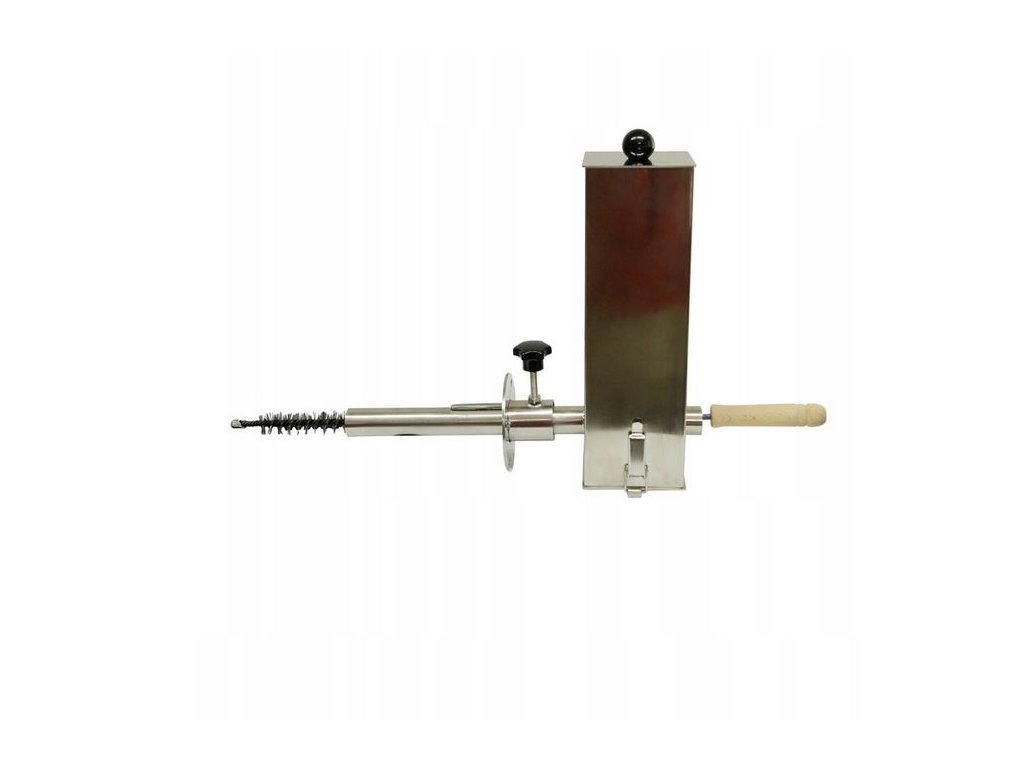

Features of the Heimdall smoke generator

• Made of acid-resistant stainless steel
• Powered by a powerful 240 l / h pump

• Hopper capacity - 3.0 litres
• Also suitable for large smokers (up to 1000 l)
• For grills with a closed lid
• Fuel: wood chips

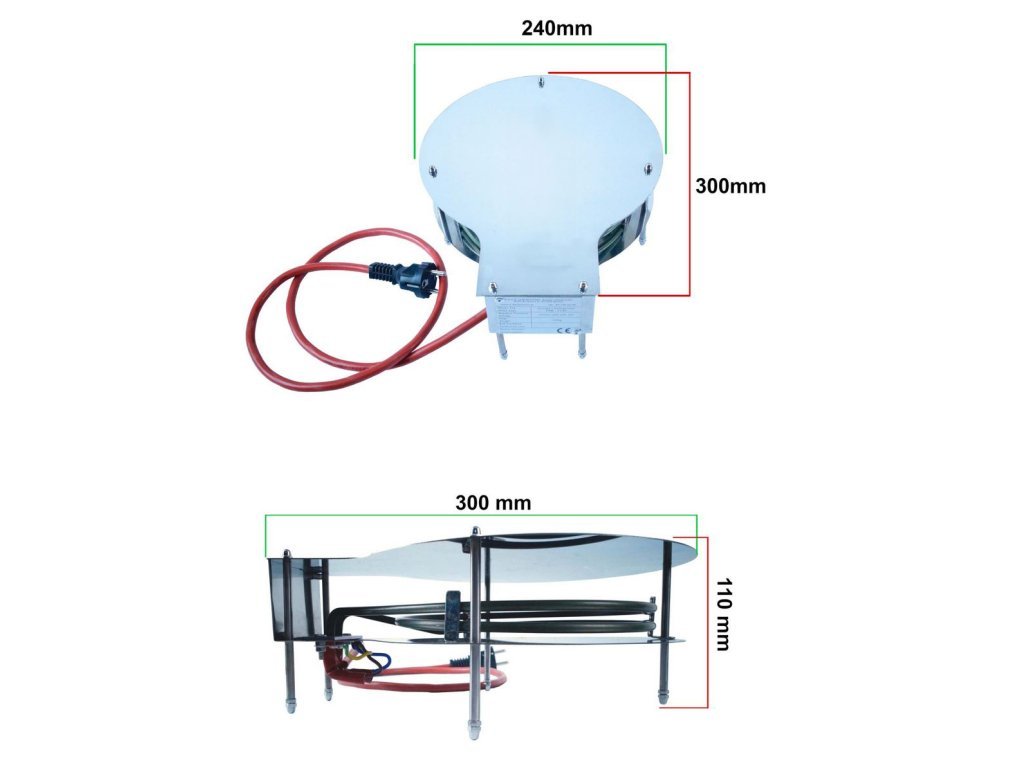

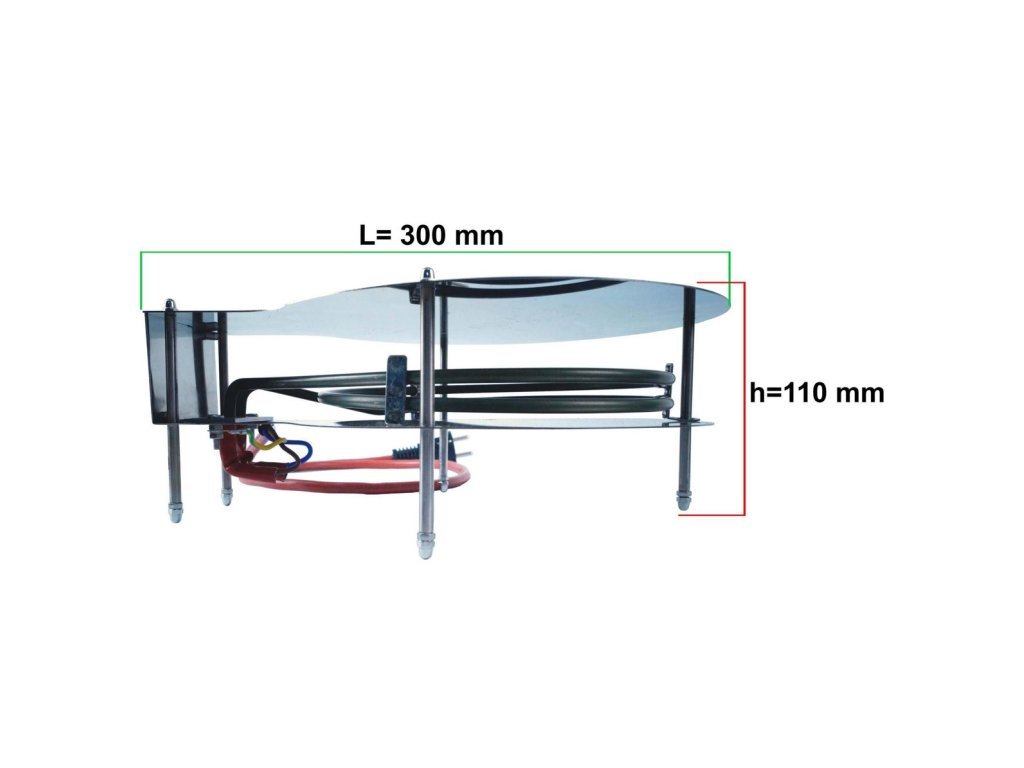

Specifications of the heating element with deflector AND SMOKE GENERATOR

• Height: 110 mm

• Depth: 300 mm

• Width: 270 mm

• Sheet cross-section: 0.8 mm
• Weight: 1 kg
• Silicone cable: 3 × 2.5 mm2
• Power cable length: 1000 mm
• Heater power: 2000W

• Voltage: 230V

• Current: 10A

• Deflector material: stainless steel PN 1.4301

• Protection class: IP20

• Current connection type: silicone cable

• Conductor termination: 1: 16A direct plug IP44

• Cable resistance: 180°C

• Operating environment: Air

• Max. Permissible chamber temperature: 110°C
