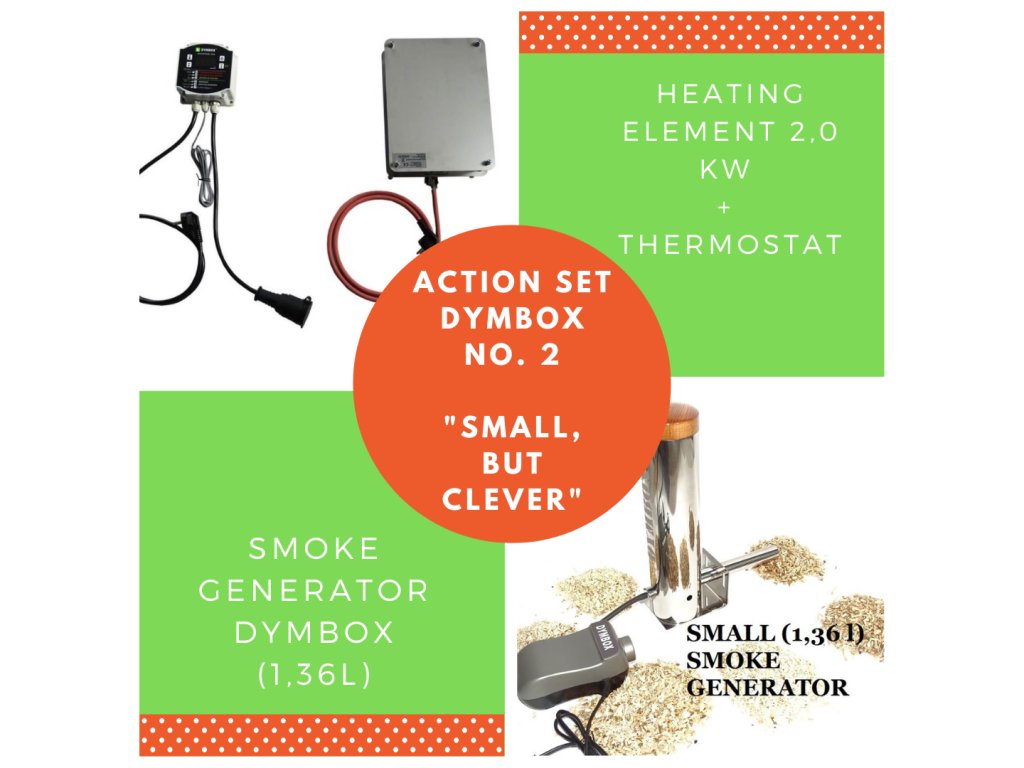

Action set Dymbox number 2 "small but clever".
The complete heating element with deflector, thermoregulator and smoke generator includes:
- Electric heating element with a power of 2000W
- Power cable W-1 SIHF 3G2,5 L-1500 terminated with IP44 plug
- Connection system
- Thermostat
- 3 x 2.5 mm thick cables with a load capacity of 16 A with IP44 protection
- 1. Power cable 1.4 m
- 2. Cable with socket 0.5 m
- 3. Temperature sensor 2 m
- Small smoke generator
- Free from us: 1 kg of wood chips
features of the heating element with deflector
- Upper and lower body made of acid-resistant steel, sheet thickness 1 mm
- Connector covers made of silicone resistant to temperatures up to 280 °C
- All screws and nuts used are made of acid-resistant steel
- Power supply 230V
- Frequency 50 Hz
- Power 2000W
Features of the thermostat - temperature controller
- Measuring range -50.0 ... + 150.0 ° C
- 2 relay outputs (control, alarm)
- Relay 30A
- Hermetic case
- Measurement and adjustment with an accuracy of 0.1 ° C
- Two additional MAX and MIN temperature ALARMS
- Memory of MAX, MIN temperature and output operating time
- Including stainless steel temperature sensor
- ECO function
- Colour display <30% larger
- Weekly timer (optional)
- Setting memory and settings after power failure
- Including NTC temperature sensor
Input:
- NTC temperature sensor 5 kOhm at 25 ° C
- Digital input, alarm
- Measuring range: -50 ... + 150 ° C
- Measurement accuracy: +/- 0.5 ° C
- Sampling period: 330 ms
- Display resolution: 0.1 ° C across the entire range
- Setting resolution: 0.1 ° C across the entire range
- Display: LED, 4 digits high 14 mm with graphic icons
- Control method: ON-OFF with hysteresis
- Regulation accuracy: set in the range of 0.1 ... 20.0 ° C
Control output:
- Relay 30A, lifespan 100,000 cycles
- For resistive load 4500W
- For inductive load: 1500W
Alarm:
- 8A relay, 100,000 cycle lifespan
- For resistive load 1,800 W
- For inductive load: 400W
Additional functions:
- MIN and MAX temperature alarm
- Audible indication of temperature alarm and sensor failure
- ECO function
Features of the small smoke generator
- Made of acid-resistant stainless steel
- Powered by a powerful 360 l/h pump
- Hopper capacity - 1.36 litres
- Also suitable for large smokers (200 to 1000 l)
- For grills with a closed lid
- Fuel: wood chips or pellets
Specifications of the heating element with deflector AND SMOKE GENERATOR
- Deflector dimensions: length 27.5 cm, width 20.5 cm, height 12 cm
- Generator height: 30 cm
How about buying a smoker to go with our awesome set? Check out all our smokers here. You are guaranteed to choose.
You can find more accessories in the smoker accessories category, and here you will also find our first-class wood chips.
| Code | Code: 746 |
|---|---|
| Brand name: | DYMBOX |
| Category: | Smoke generators |
| Weight: | 10 kg |
| EAN: | 0746020051461 |
